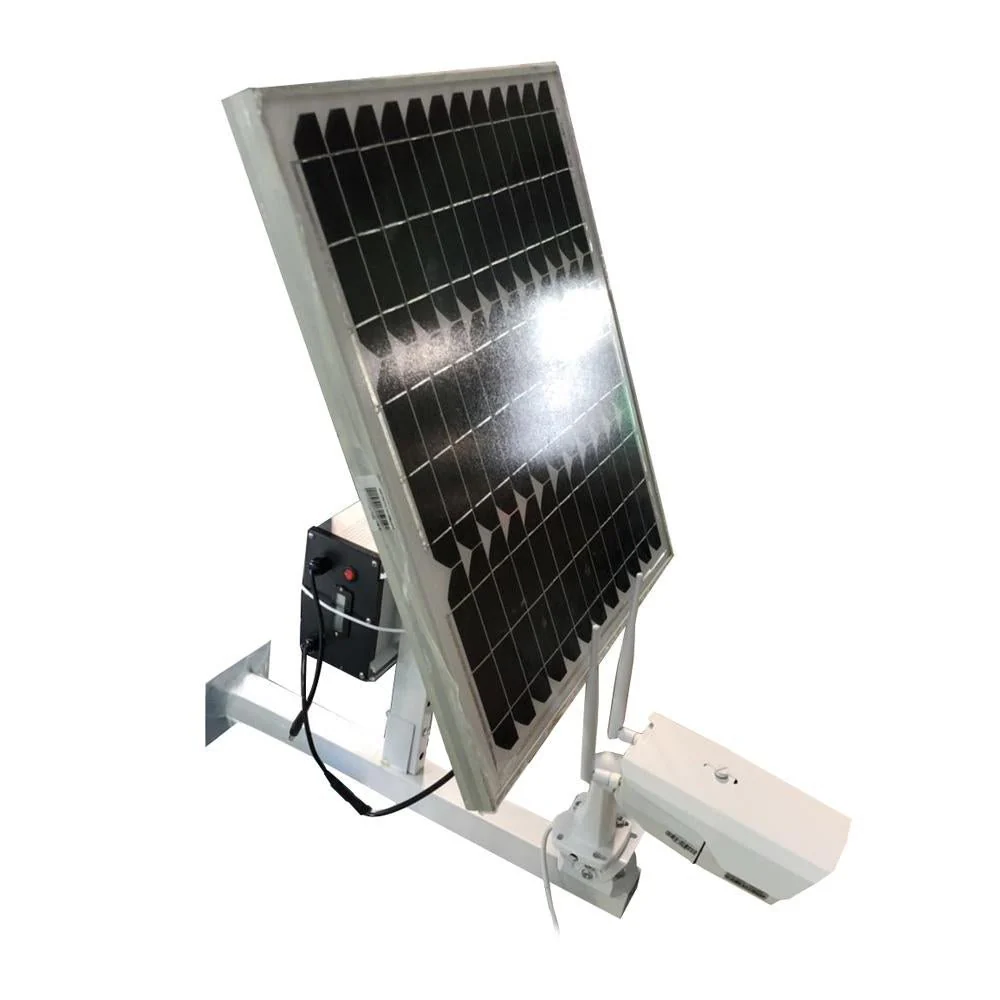

Support 3G 4G network solar powered outdoor monitoring system

Hardware Configuration
Standard H.264 encoding chip that supports dual stream technology;
A SIM card slot that supports three major carrier networks;
One TF card slot, up to 64G;
An RJ45 interface for wired network transmission;

Technical Parameters
System main processor Huawei Hisilicon chip 3518E
Video video compression algorithm H.264
Coding ability 1*960

Audio Audio Compression G.711A (optional)
Intercom support
Recording and playback Recording mode Manual > Alarm > Dynamic detection > Timing
Local playback 1 way 960P
Storage and backup Each hard disk space occupied 720P ~ 20G / day * Audio: 691.2M / day * channel
Backup method Network backup
Interface Video Input IPC
Video output LAN
Audio input and output 1 way
Alarm input
Network interface RJ45 10M/100M adaptive Ethernet port
PTZ control
USB interface
Hard disk interface
Wireless interface Unicom, mobile 4G/3G Telecom 4G
Size
Power supply 12V2A
